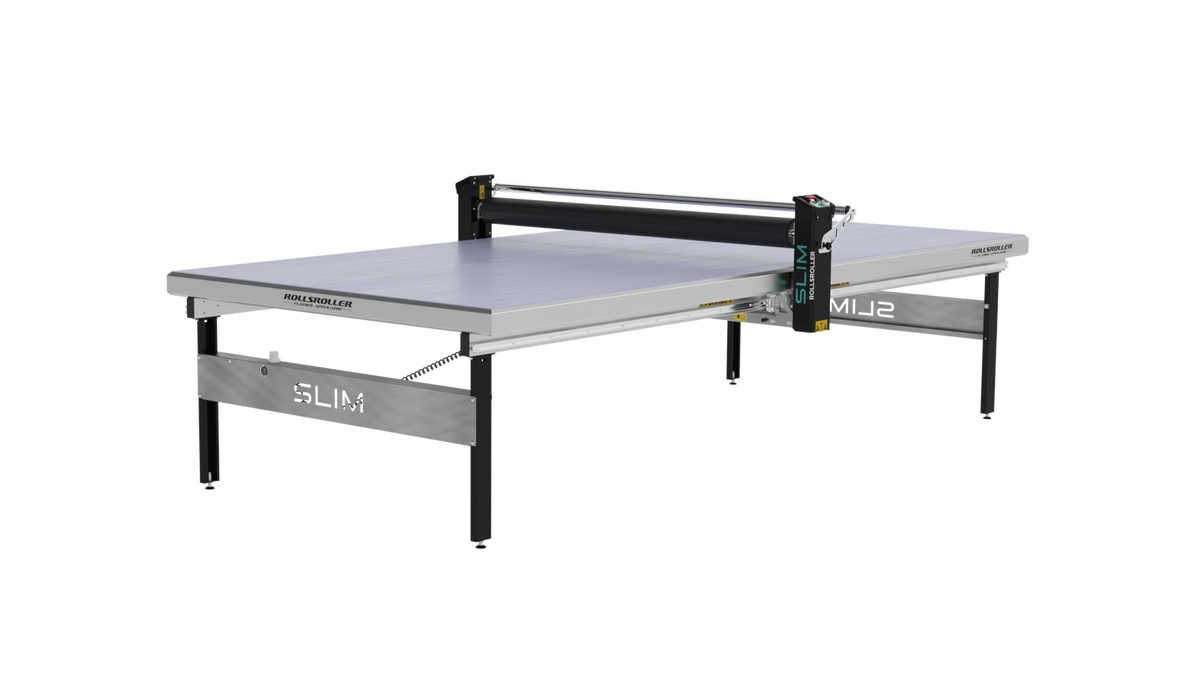

ROLLSROLLER SLIM Flatbed Applicator

ROLLSROLLER SLIM Flatbed Applicator

122-040

$9,400.00 USD
$9,400.00 USD
Sale Sold out
Shipping calculated at checkout.
CONFIGURE FACTORY ACCESSORIES & OPTIONS
Popular Upgrade ⌄
Performance & Safety ⌄
Cutting & Air Tools ⌄
Material & Roll Handling ⌄
CONFIGURED PRICE Per machine
—
OR
Request a quote from a local dealer Send this exact configuration
→
YOUR CONFIGURATION

The selected machine size, options and configured price will be attached automatically.

Submitting this form does not place an order.

View full details

ROLLSROLLER SLIM

SLIM REMOVES COMPLEXITY, NOT QUALITY

SLIM was developed to make professional flatbed application accessible to more businesses worldwide.

It delivers essential ROLLSROLLER engineering in a focused industrial configuration, designed for smart investment, operational efficiency and long-term reliability.

PRECISION. SPEED. CONTROL.

BUILT TO WORK. BUILT TO LAST.

Industrial welded steel construction
Precision glide beam system
Smooth, controlled application
Ergonomic and safe operation
Compact logistics
ROLLSROLLER reliability

UPGRADES & ACCESSORIES

BUILD THE SETUP YOU NEED

Start simple and upgrade over time.

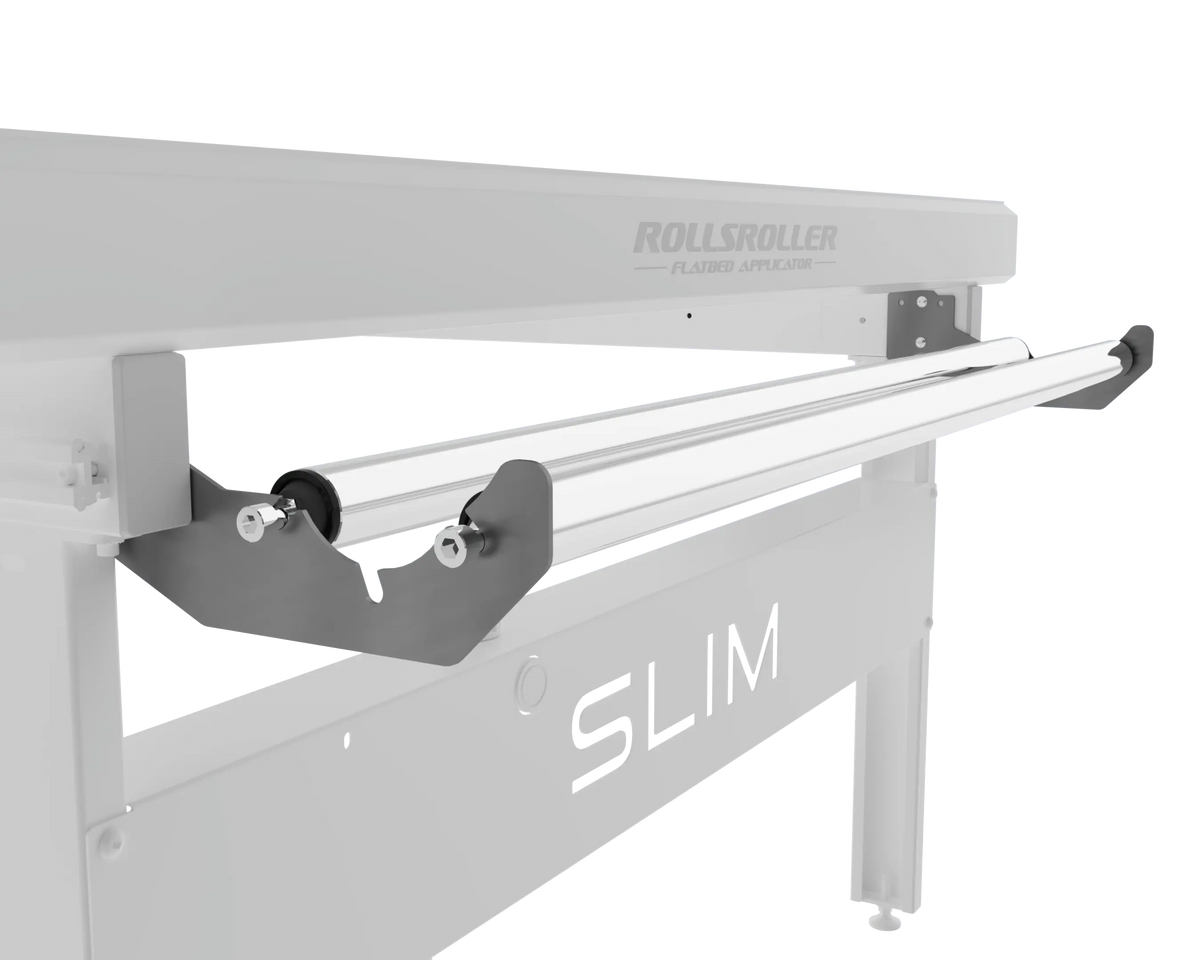

Available options include LED illumination, roll holders, static and application tools, air blow gun, dual-side control and emergency stop.

TECHNICAL SPECIFICATIONS

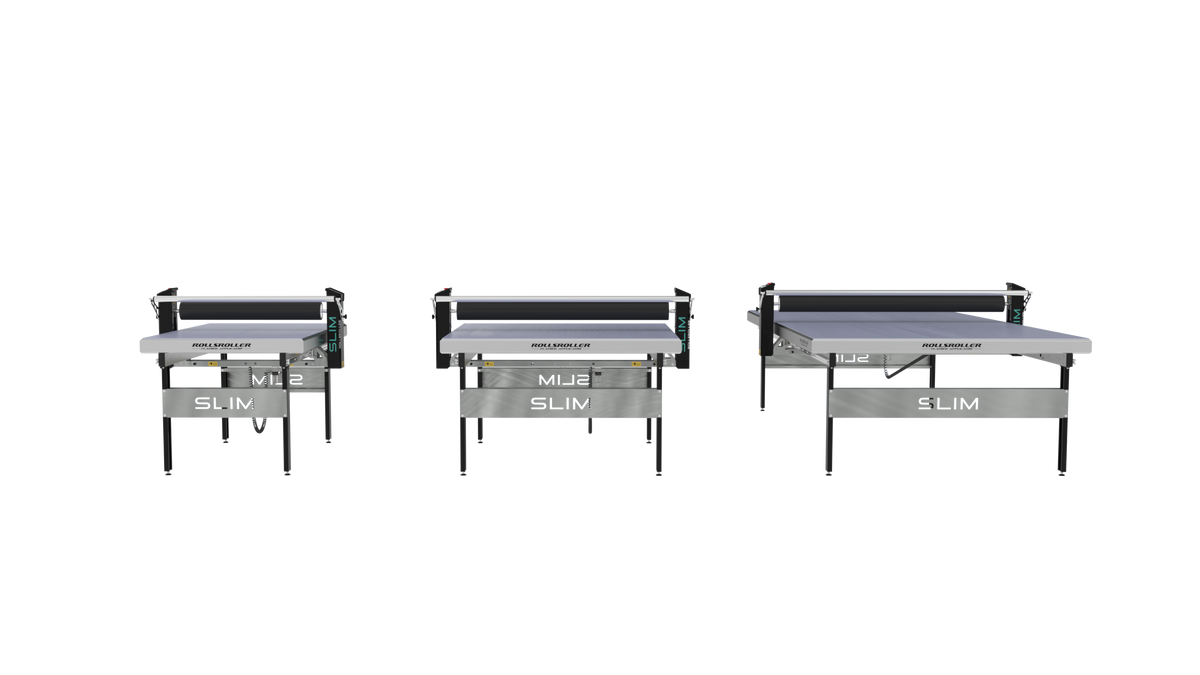

Dimensions & working area

160/100 SLIM
Flatbed: 1640 × 1000 mm
Working area: 1240 × 930 mm
Work height: 850 mm

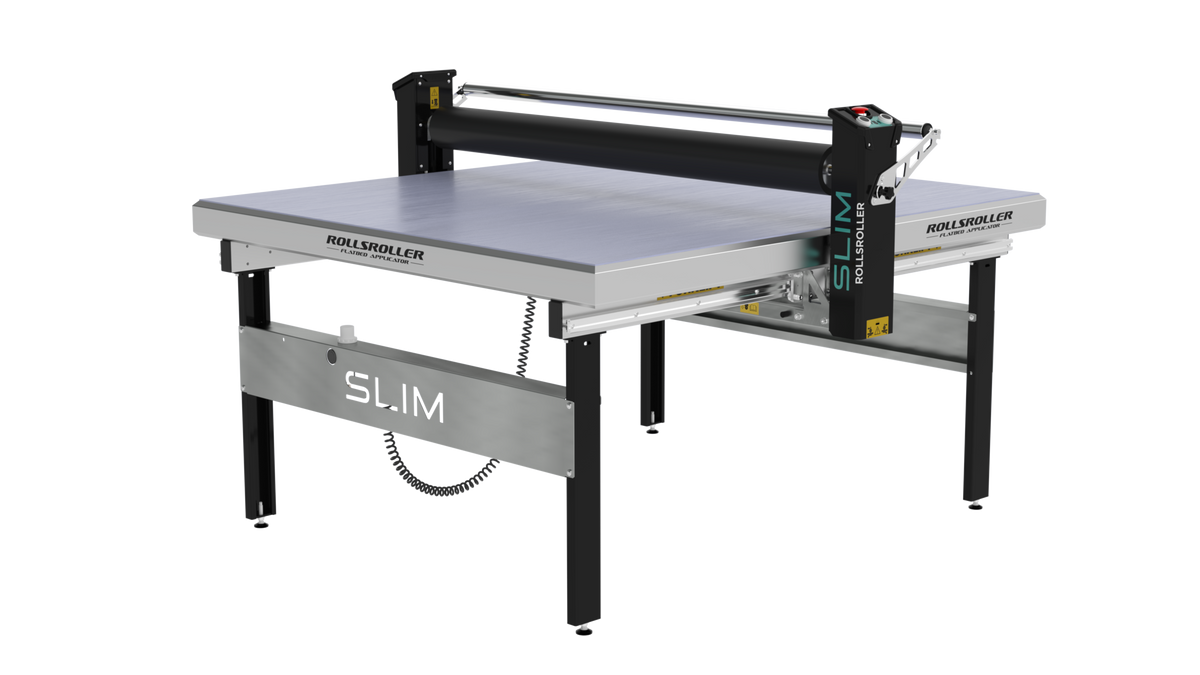

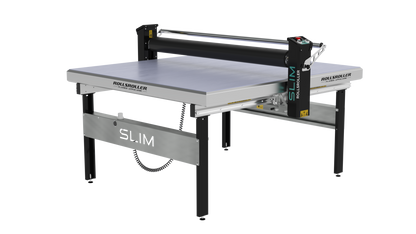

160/147 SLIM
Flatbed: 1640 × 1470 mm
Working area: 1240 × 1400 mm
Work height: 850 mm

300/170 SLIM
Flatbed: 3040 × 1700 mm
Working area: 2640 × 1630 mm
Work height: 850 mm

360/170 SLIM
Flatbed: 3640 × 1700 mm
Working area: 3240 × 1630 mm
Work height: 850 mm

Weight & packaging

160/100 SLIM
Machine weight: 155 kg / 342 lb
Total packed weight: 210 kg / 463 lb
Package: 1750 × 460 × 1750 mm

160/147 SLIM
Machine weight: 185 kg / 408 lb
Total packed weight: 250 kg / 551 lb
Package: 1750 × 460 × 1750 mm

300/170 SLIM
Machine weight: 295 kg / 650 lb
Total packed weight: 410 kg / 904 lb
Package: 3100 × 460 × 1970 mm

360/170 SLIM
Machine weight: 335 kg / 739 lb
Total packed weight: 455 kg / 1003 lb
Package: 3700 × 460 × 1970 mm

Air requirements

Required air supply:
6–8 bar / 0.6–0.8 MPa

Set pressure during operation:
3–6 bar / 0.3–0.6 MPa

Construction & warranty

Flatbed surface:
Tempered glass + Cutting Mat

Wheels:
No

Warranty:
3 year limited warranty

User manual:
English
